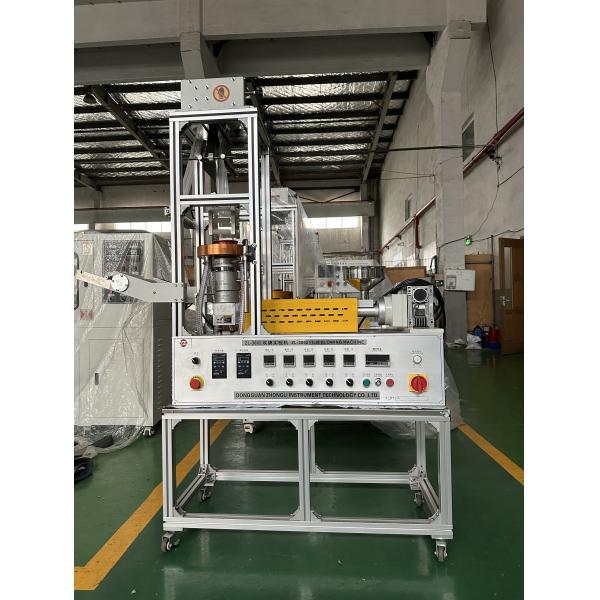

5 Layers Co Extrusion Blown PE Film Production Line Multi Layers Plastic Film Blowing Machine

Brand Name : ZL

Model Number : ZL-3065

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : 5 Layers Co-Extrusion Blown PE Film Production Line Multi Layers Plastic Film Blowing Machine is packaged within wooden case.

Name : 5 Layers Co-Extrusion Blown PE Film Production Line Multi Layers Plastic Film Blowing Machine

Classification : Blown film

The Overall Dimensions (L*W*H) : 2100*650*1900mm

Weight : 270KG (net weight)

Electric Resource : 220V, 1PHASE, 50HZ

Plastic Raw Materials : PE(except the special material)

Bowing Width : 100-150mm

Contact Now

5 Layers Co-Extrusion Blown PE Film Production Line
Multi-layer plastic film blowing machine designed for research, development, and production testing applications.
Product Overview
This nationally patented small laboratory blown film machine is engineered for developing new materials, measuring color masterbatch dispersibility, optimizing production process parameters, and studying the blown film forming properties of various materials. Ideal for scientific research, teaching demonstrations, and production enterprise laboratory use.
Operating Conditions
Electric Resource 220V, 1PHASE, 50HZ
Plastic Raw Materials PE (except special materials)
Blowing Width 100-150mm
Capacity (Theoretical Value) 0.5-2.0kg/h
Minimum Single Usage 200g
Blowing Thickness 0.01-0.10mm
Whole Machine Control Method PLC
Move Method Fuma Wheel F60
Main Components Specification
SJ25/30 Single Screw Extruder
Barrel Screw Diameter Φ25mm
Screw Length To Diameter Ratio 30:1
Barrel Screw Material 38CrMoAlA
Nitriding Depth 0.4~0.7mm
Surface Hardness HV940~1050
Screw Surface Treatment Hard chrome plated on the surface
Screw Structure Double-pass mixing section - special screw structure to enhance plasticization
Barrel Heating Way Electric heating
Screw Speed 10 ~ 60rpm
Motor Form Dedicated servo motor
Motor Power 2300W
Speed Mode Servo governor
Gearbox Planetary gearbox
Speed Control High precision 0.01RPM - digital input
Temperature Control SSR
Way To Control PI control
Barrel Temperature Control Area 3 Zone
