Full Automatic Four - color Ink Proofing Machine , Color Display Instrument
Product Overview :
Color display instrument is also known as ink proofing machine, automatic four-color ink proofing machine, ink display color instrument, flexible plate display color instrument, automatic display color instrument, offset printing ink proofing, gravure printing ink proofing, toner, printing proofing and so on.On the market ink display color instrument has semi-automatic more automatic.If you want easy operation, accurate adjustment, of course, the choice of automatic display color instrument.
Product usage:
Ink proofing machine: printing color printing proof press the proof press imitate the working principle of the printing press, pressure adjustable, substrates, widely applicable to the printing, packaging, printing ink, accurately predict ink hue, 2 minutes show a color printing and production material in the exhibition field article color check color color printing machine, will be specially tonal right to find a place in the printer, color completely to prepress work.The printing spot color printer greatly saves the printing machine production time;Reduce the loss of paper, ink, rags, car wash water, labor, electricity;Improve the stability of spot color.
Technical parameters:
| Blending method | motor automatically blending ink (blending time can be adjusted) |
| Printing pressure | 1 ~ +1mm manual adjustment, printing pressure can be accurately adjusted according to the thickness of the printing material |
| Uniform ink speed | three levels of direct speed regulation, respectively 400, 550, 700 RPM.The printing speed can be adjusted according to the characteristics of the ink (viscosity) and the characteristics of the paper (hardness and softness) by shifting gears. The speed can be adjusted by frequency conversion 0-1000 RPM. |
| Display speed | three speed direct regulation, speed: 10, 15, 20 RPM, speed adjustable by frequency conversion, 0-30 RPM. |
| Roller width | 225mm (the maximum color area: 225mm ×210MM) |
| Effective area of color strips | 45mm x 210mm (4 strips) |
| Rubber roller | German imported rubber (VU70), the same material as the printing machine rubber roller (common rubber roller and UV rubber roller can be replaced) |
| Frequency converter | Taiwan Delta |
| Control system | maintenance control system |

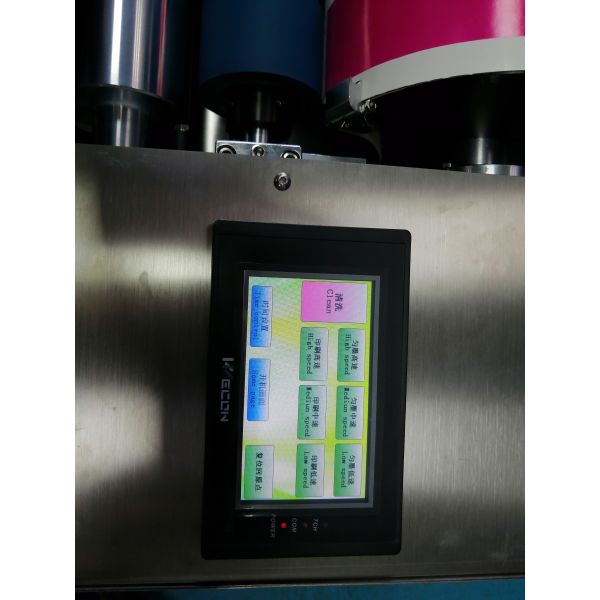

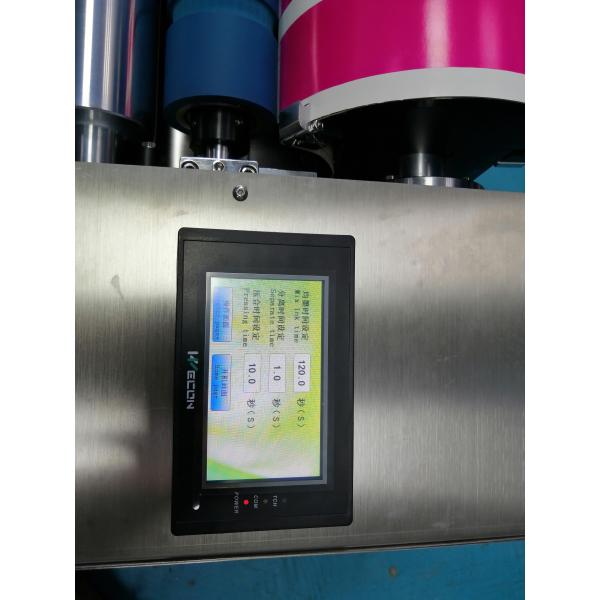

| Control mode | man-machine interface |
| Net weight of the machine | 75kg (82kg after packaging) |
| Working environment temperature | (20±10°C), humidity <85% |
